Construction
The system for a 125 mm wall consists of a galvanized steel cassette with a complete running system forming the structure inside the wall, and a tunnel made of chipboard and MDF. The 100 mm tunnel is available with frameless leaves.
Surface
Table price is for the tunnel for a 125 mm wall; tunnels for 100 and 150 mm walls are available at a different price (100 mm cheaper, 150 mm more expensive). For double-leaf doors, tunnel price +30%.
System
non-rebated
Sizes
60, 70, 80, 90, 100 cm
PORTA 2026
System przesuwny KOMPAKT Sliding Systems Door

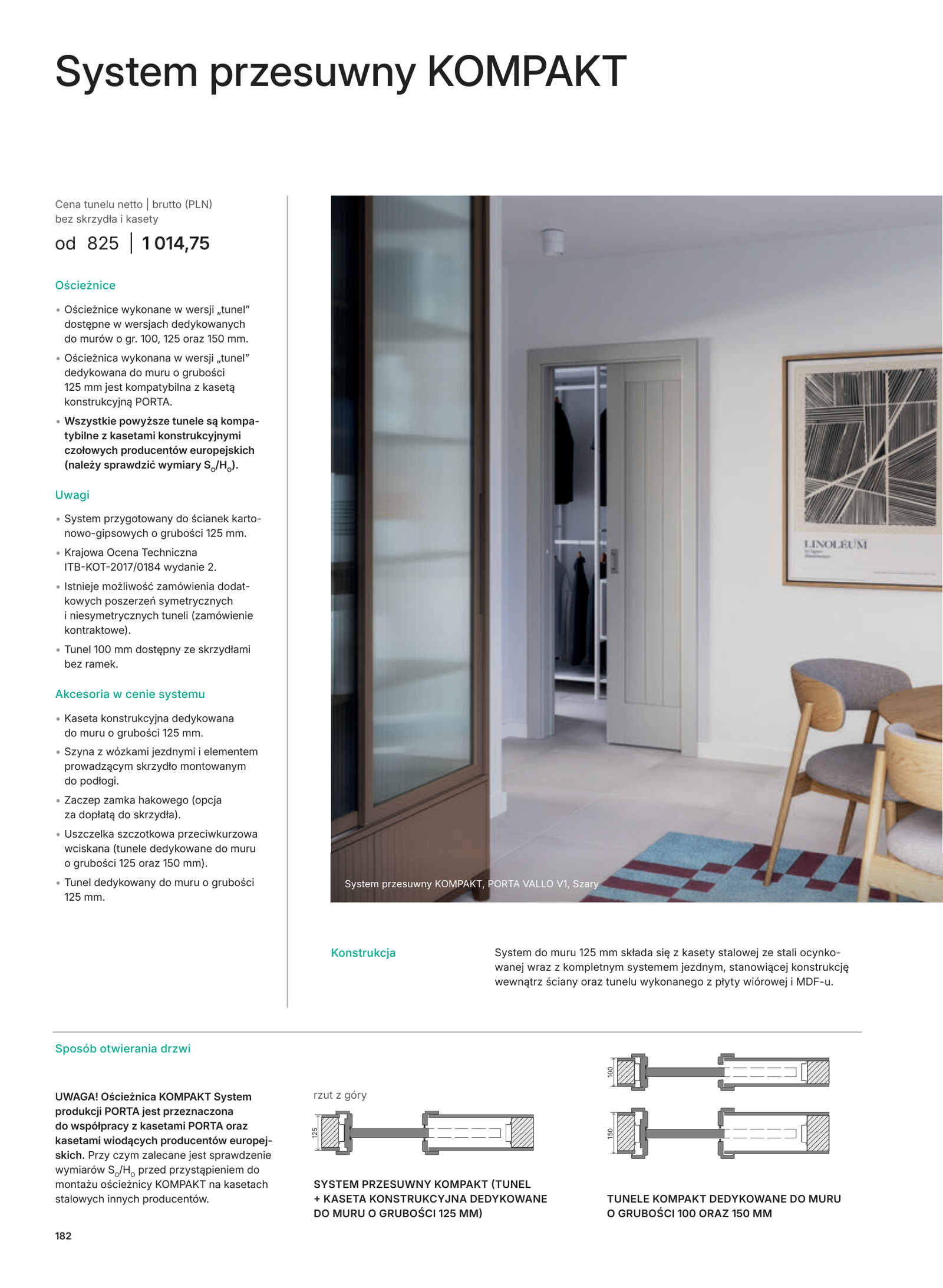

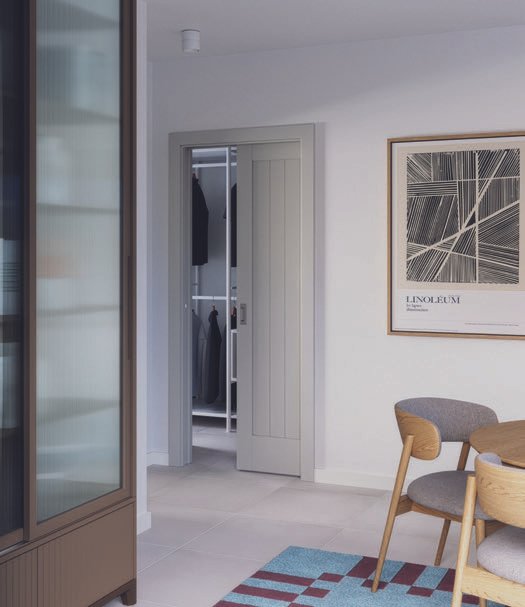

System przesuwny KOMPAKT is a pocket (in-wall) sliding door system in tunnel version, where the leaf disappears completely into the wall. Tunnels are available for wall thicknesses of 100, 125, and 150 mm. The 125 mm tunnel is compatible with the PORTA construction cassette; all tunnels are also compatible with leading European manufacturers' construction cassettes. Price is for the tunnel without leaf and cassette, according to the price group of the paired leaf finish.
Construction
The system for a 125 mm wall consists of a galvanized steel cassette with a complete running system forming the structure inside the wall, and a tunnel made of chipboard and MDF. The 100 mm tunnel is available with frameless leaves.
Surface
Table price is for the tunnel for a 125 mm wall; tunnels for 100 and 150 mm walls are available at a different price (100 mm cheaper, 150 mm more expensive). For double-leaf doors, tunnel price +30%.
System
non-rebated
Sizes
60, 70, 80, 90, 100 cm
from214,50 EUR+ Frame + VAT
Prices are approximate and for the door leaf only. Frame (door box) is sold separately. Contact us for a full quote.
Possible Configuration
- Construction cassette dedicated to a 125 mm wall
- Rail with running trolleys and floor-mounted leaf guide
- Brush dust seal, press-in type (125 and 150 mm tunnels)
- Tunnel dedicated to a 125 mm wall
Door Box Options
Tunel 100 mm: 815 - 1105 netto | 1002.45 - 1359.15 brutto (10.00 netto less than the 125 mm tunnel in every finish tier)
Tunel 125 mm (kompatybilny z kasetą PORTA): 825 - 1115 netto | 1014.75 - 1371.45 brutto (the prices listed in the variants table)
Tunel 150 mm: 839 - 1129 netto | 1031.97 - 1388.67 brutto (14.00 netto more than the 125 mm tunnel in every finish tier)
Features
Variants & Pricing
| Code | Description | Price | Price + VAT |
|---|---|---|---|
| 1-okl-syntetyczna | Tunnel (125, with PORTA cassette) for leaf with (1) synthetic veneer | 214,50 EUR | 263,84 EUR |
| 2-okl-syntetyczna-laminat-pp | Tunnel (125, with PORTA cassette) for leaf with (2) synthetic veneer / Laminate PP | 219,70 EUR | 270,23 EUR |
| 3-laminat-cpl | Tunnel (125, with PORTA cassette) for leaf with (3) CPL laminate | 222,30 EUR | 273,43 EUR |
| 2-okl-lakierowana-premium | Tunnel (125, with PORTA cassette) for leaf with (2) lacquered Premium finish | 226,20 EUR | 278,23 EUR |
| 3-lakier-uv-premium-plus | Tunnel (125, with PORTA cassette) for leaf with (3) UV lacquer Premium Plus | 289,90 EUR | 356,58 EUR |
Available Upgrades
| Option | Price | Price + VAT |
|---|---|---|
| Construction cassette, single leaf | 315,90 EUR | 388,56 EUR |
| Construction cassette, double leaf | 631,80 EUR | 777,11 EUR |
| CPL laminate 0.2 - marked colors * | 14,30 EUR | 17,59 EUR |
| CPL laminate 0.2 - UNI MATTE group | 20,80 EUR | 25,58 EUR |
| Closing synchronization system - double doors | 45,50 EUR | 55,97 EUR |
