GAMMA Special Doors - POL-SKONE
Construction
Softwood timber frame covered on both sides with 5 mm HDF board with 1 mm lead insert (total 2 mm lead for the leaf). Chipboard filling.
Surface
Smooth painted or veneered surface, covered with CPL laminate 0.2 mm or 0.5 mm, HPL laminate 0.7,1.0 mm thick, or wood-effect foil.
System
rebated
Sizes
60, 70, 80, 90, 100, 110 cm
POL-SKONE 2026

GAMMA Special Doors Door | Soundproof 37 dB

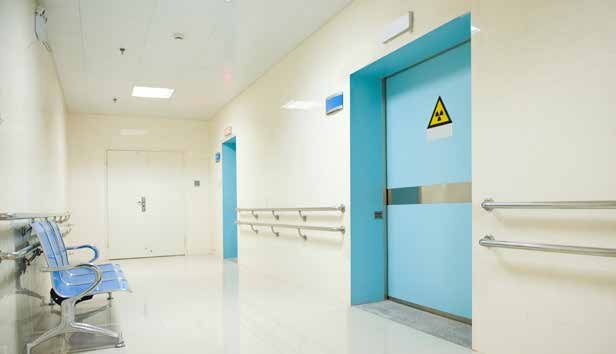

Rebated system doors. The door leaf structure consists of a softwood timber frame covered on both sides with 5 mm HDF board with a 1 mm lead insert (total lead insert thickness of 2 mm for the leaf), with chipboard filling. The doors are intended for use in public buildings (hospitals, clinics and medical offices) as well as industrial and warehouse buildings, as internal entrance doors closing openings in interior walls between corridors and rooms where X-ray radiation is emitted. Mechanical class: 3rd class (heavy duty conditions), sound insulation: class D1, 35, D2, 35, class Rw=37 dB; doors approved for sale under PN-EN 14351-2:2018.

Construction
Softwood timber frame covered on both sides with 5 mm HDF board with 1 mm lead insert (total 2 mm lead for the leaf). Chipboard filling.
Surface
Smooth painted or veneered surface, covered with CPL laminate 0.2 mm or 0.5 mm, HPL laminate 0.7,1.0 mm thick, or wood-effect foil.
System
rebated
Sizes
60, 70, 80, 90, 100, 110 cm
from1 979,90 EUR+ Frame + VAT

Prices are approximate and for the door leaf only. Frame (door box) is sold separately. Contact us for a full quote.

GAMMAGAMMAGAMMA

Possible Configuration

  • Single-point mortise lock
  • 3 object hinges, angular, width 60,110
  • Drop-down seal

Door Box Options

door box wooden fixed GAMMA z wkładem ołowianym (fixed wooden frame with lead insert)
door box wooden adjustable GAMMA ZG1,ZG10 z wkładem ołowianym (adjustable wooden frame with lead insert, wall range 92,402 mm)
door box metal fixed GAMMA FD12 z blachy 1,5 mm z wkładem ołowianym (fixed metal frame FD12, 1.5 mm sheet metal with lead insert)
door box metal adjustable GAMMA ZO1,ZO9 z blachy 1,5 mm z wkładem ołowianym (adjustable metal frame, 1.5 mm sheet metal with lead insert, wall range 95,365 mm)
Ościeżnice metalowe standardowo malowane proszkowo: białe (RAL 9016 i RAL 9003), szare (RAL 7047), brązowe (RAL 8014), beżowe (NCS S 2005 Y50R), grafitowe (RAL 7024), czarne (RAL 9005) (metal frames powder coated as standard)

Features

Mechanical Class3
Sound Insulation37 dB
X-ray protectionlead inserthospitalmedicalspecialrebatedsound insulation 37dBmechanical class 3

Similar Doors

POL-SKONE WAHADŁOWE Special Doors
POL-SKONE
WAHADŁOWE
Special Doors
3 variants4 sizes
View →
POL-SKONE ISOLA Special Doors
POL-SKONE
ISOLA
Special Doors
14 variants5 sizes
View →
POL-SKONE HIGRO Special Doors
POL-SKONE
HIGRO
Special Doors
5 variants4 colors6 sizes
View →

Variants & Pricing

CodeDescriptionPricePrice + VAT
LAMINOWANE CPL 0,2 mmCPL laminate 0.2 mm1 979,90 EUR2 435,28 EUR
LAMINOWANE CPL 0,2 mm EGGERCPL laminate 0.2 mm EGGER2 018,90 EUR2 483,25 EUR
UNI MAT PLUSUni Mat Plus1 952,60 EUR2 401,70 EUR
LAMISTONELamistone1 952,60 EUR2 401,70 EUR
SILKSTONESilkstone1 952,60 EUR2 401,70 EUR
MALOWANE 9003Painted 90032 036,58 EUR2 504,99 EUR
FORNIROWANE GRUPA AVeneered Group A2 605,46 EUR3 204,72 EUR
FORNIROWANE GRUPA BVeneered Group B2 653,04 EUR3 263,24 EUR
FORNIROWANE GRUPA C, DVeneered Group C, D2 795,78 EUR3 438,81 EUR

Available Upgrades

OptionPricePrice + VAT
Stainless steel panels glued at the bottom of the leaf or at handle height
Door closer, electric strike, electromagnetic lock
Width "100": +10% surcharge
Width "110": +20% surcharge
